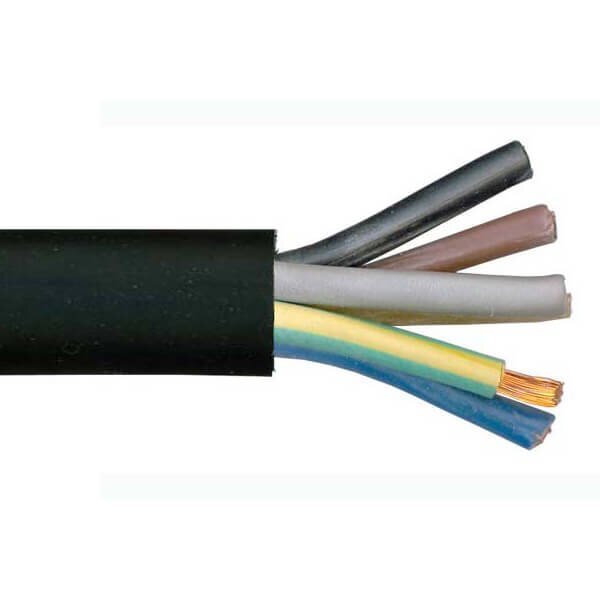

Customization Waterproof Rubber Flexible Cable H07RN-F For Industrial Power Supply

Name: Customization Waterproof Rubber Flexible Cable H07RNF For Industrial Power Supply
Brand: Ke Fei Te
Price: 0.20 USD

Cheap Customization Waterproof Rubber Flexible Cable H07RN-F For Industrial Power Supply wholesale

Brand Name : Ke Fei Te

Model Number : YC

Certification : CCC,ISO9001

Place of Origin : Chongqing, China

MOQ : 500 meters

Price : $0.20-1.80/meters

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 4-12DAYS

Packaging Details : wooden drum,wooden pallet,woven bag,plastic pallet

Insulation Material : EPR

Type : LOW VOLTAGE Cable

Application : Power supply for mechanical equipment, metallurgy and heavy industry

Conductor Material : stranded copper conductor

Jacket : Rubber

Size : 1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm ,70mm 95mm and so on

Product Name : H07RN-F Rubber cable

Shape : round wire

Feature : flexible,movable, oil resistance ,waterproof ,tensile resistance and so on

Conductor : Stranded Copper Wire Conductor

Sheath : Rubber Sheath

Rated voltage : 450/750V

Core : Single Core

Filler : Rope

Contact Now

450/750V H07RN-F Heavy Duty Rubber Flexible Cable EPR Insulation Stranded Copper Conductor Multi Core Power Supply Cable

450/750V Single Copper Conductor H07RN-F EPR Insulation CPE Sheath Flexible Rubber Power Cable. This rubber cable features a flexible movable design with multiple strands of thin copper wire as conductor, EPR rubber insulation and rubber sheath. Its softness and tensile resistance make it ideal for various electrical equipment in both indoor and outdoor environments, particularly in hot environments such as power generation, metallurgy and chemical industries.

Product Specifications

Conductor: Stranded Copper Core
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: CPE
Configuration: Single Core,2cores,3cores,4cores,5cores
Voltage Rating: 450/750V
Temperature Range: -30°C to +70°C (90℃ max)
Size:1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm,70mm,95mm,120mm and so on
Filler:Rope
Special Features: Movable, Flexible, oil resistance, small bending radius, tensile resistance

Customization Waterproof Rubber Flexible Cable H07RN-F For Industrial Power Supply

Applications

Flexible rubber sheath cables possess core characteristics such as wear resistance, oil resistance, weather resistance, high temperature resistance, resistance to mechanical damage, and excellent flexibility. They can adapt to complex and harsh working environments. Their application scenarios are mainly concentrated in fields that have high requirements for cable protection performance and mechanical strength.Their excellent flexibility makes them ideal for complex and harsh working environments, particularly in situations involving frequent movement, mechanical friction, and oil exposure.

Customization Waterproof Rubber Flexible Cable H07RN-F For Industrial Power Supply

Technical Characteristics

Temperature Rating

Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C
Insulation tested to +90°C

Minimum Bending Radius

Fixed: 4 x overall diameter
Flexed: 6 x overall diameter

Product Specifications

Product Name	H07RN-F Rubber cable
Brand	Ke Fei Te
Model	YC
Conductor Material	Annealed copper conductor
Insulation Material	EPR
Jacket	General Rubber Sheath
Color	Black
Shape	Round wire
Feature	Flexible, oil resistance, Inflaming retarding, soft and tensile resistance

Company Profile

Customization Waterproof Rubber Flexible Cable H07RN-F For Industrial Power Supply

Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40 years. As a large enterprise in cable production, we manufacture various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements.

Our products are globally distributed and widely used in coal mines, power stations, transportation and other fields, recognized for excellent quality and after-sales service.

Our Advantages

Advanced Technology
High Quality Design
Perfect Testing Equipment
Strict Quality Control
Mature Process Flow

Production Equipment

Exhibition

Certification

Packing & Delivery

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.

Q: Can you produce and manufacture products according to customer requirements?

A: Yes, we can customize the product according to your requirements.

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q: How can i place an order?

A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
